The tree window shows the logical hierarchy of widgets and their child-widgets. For example you can see a panel as a tree's node and the widgets on it as child nodes.

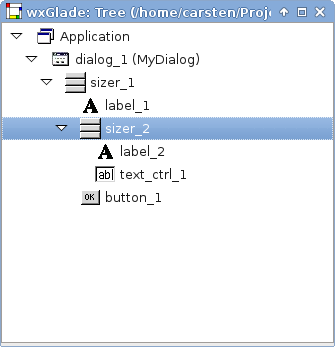

Figure 5.2. The Tree Window

You can show or hide the tree window by the menu item View/Show Tree.

Usually a frame or a panel contains a sizer, so you often see a sort of panel-sizer-widgets structure. The tree gets more complex when you nest sizers within sizers.

You open the Design Window with double-clicking to the top-level widget first. In the next step you can navigate the visual presentation of your widget tree by mouse, expand and collapse sizers, and copy, cut or remove widgets.

A click on an icon in the tree window displays the properties of the corresponding element in the “Properties” window. A double click in a frame, dialog or panel icon makes the designer window show it as it appears. Clicking with the right button of the mouse gives you a pop-up menu.

Figure 5.3. The menu for a widget

Figure 5.4. The menu for a sizer

The pop-up menu for a widget allows you to copy, cut or remove the element. The pop-up menu for a sizer allows you to copy, cut or remove the element, or add or insert an empty slot.
